Marine Oil Hose Flexible Marine Hose For Ship To Ship Oil Transport

Marine Oil Hose Flexible Marine Hose For Ship To Ship Oil Transport
Marine Oil Hose Flexible Marine Hose For Ship To Ship Oil TransportMarine Oil Hose Flexible Marine Hose For Ship To Ship Oil TransportMarine Oil Hose Flexible Marine Hose For Ship To Ship Oil Transport
group name
STS Oil Hose
Min Order
1 piece
brand name
Jerryborg Marine,safe docking,safe mooring
model
JRBMA-01
Nearest port for product export
Qingdao Port, Shanghai Port
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash
update time
Sat, 09 Jan 2021 14:43:55 GMT

Paramtents

  • material natural rubber

  • color black

  • place of origin Qingdao, China

  • brand name Jerryborg

  • application STS petroleum delivery

  • warranty 12 months

  • safety factor 1:5

  • characteristics gas tightness, low temperature

Packging & Delivery

  • Min Order1 piece

Briefing

Marine oil hose is designed for transferring crude oil, petroleum products of cargoes between oil tankers and ships.

Detailed

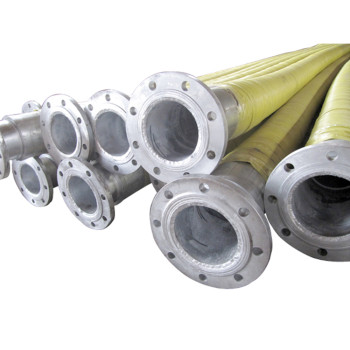

Marine Oil Hose Flexible Marine Hose For Ship To Ship Oil Transport

Marine oil hose description

Fully compliant with OCIMF standards, Jerryborg marine oil hose is able to withstand abrasion and bending forces and still performs excellent at low temperatures. Besides, the risk of leakage or bulge is absent.


Marine oil hose consists of inner tube, reinforcement and cover layer. The cover layer made of CR synthetic rubber protects the hose body from the damage of external corrosive enviroment. Reinforcement is composed of high tensile strength fabrics with steel wire which make sure that there won't be any cracks. The inner tube is made of synthetic rubber which is resistant to oil and fuel.

Apart from the advantages of easy installation and less maintenance, marine oil hose performs well in a temperature range of -25℃ to 82. It's safety factor is 5:1.


Marine Oil Hose Features

1. Easy to install and maintain

2. Excellent resistance to abrasion, UV, aging and corrosive environment

3. Bear powerful tension and torsion force

4. Withstand the crushing and bending force

5. Independent foam floating casing to prevent water absorption

Marine Rubber Oil Hose Construction

1. Cover layer: CR compound rubber resistant to abrasion, sunlight and sea water.

2. Reinforcement layer: High tensile polyester fabric with stainless steel helix embedded.

3. Inner tube: Synthetic rubber or thermoplastic material with features of smooth and resisitance to oil and fuel

Marine Rubber Oil Hose Specification
Diameter
Length
6''
6m (19.7ft)


8''
6m (19.7ft)
8m (26.2ft)
10m (32.2ft)
12m (39.4ft)

10''
8m (26.2ft)
10m (32.2ft)
12m (39.4ft)


12''
7.6m (25.0ft)
9.1m (30.0ft)
10m (32.2ft)
12m (39.4ft)
For further information feel free to contact me.
