Marine Rubber Airbag Infatable Air Bag for Vessel with High Bearing Capacity

group name: Heavy Lifting Rubber Airbag

Min Order: 1 piece

brand name: Jerryborg Marine，safe docking，safe mooring

model: JRBMA-01

Nearest port for product export: Qingdao Port, Shanghai Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash

update time: Wed, 06 Jan 2021 11:30:48 GMT

contact supplier

Paramtents

Production Standard ISO14409-2011
Rubber Material ASTM Standard Nature Rubber
Pressure 0.05-0.5Mpa
Diameter 0.5-2.5 meters
Length 0.5-26meters
Application Heavy Lifting Airbag
Warranty 12 months
Reinforcement Layers 4-15 layers
Classification Society Certification CCS ABS LRS BV DNV

Packging & Delivery

150cm x200cm x60cm
Min Order1 piece

Briefing

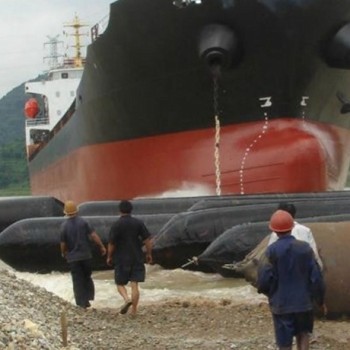

Marine rubber airbag Is widely used in ship launching & upgrading, lifting & moving, underwater-engineering buoyancy aid.

Detailed

Marine Rubber Airbag Infatable Air Bag for Vessel with High Bearing Capacity

Marine rubber airbag, also named roller bags or ship launching rubber balloon,was first invented in 1981 in Jinan city of Shandong Province.

Marine rubber airbags are composed of inner reinforced synthetic-tire-cord layers and outer rubber layeres in the shape of cylindrical. The marine rubber airbag is not limited to space and heavy machinery, which could efficiently shorten the construction period and save lots of funds.

Advantages of Jerryborg Marine Rubber Airbag

high bearing capacity
high capacity against compression and twisting
lightweight and easy to deploy
saving labor cost and time
new design of anti-bursting construction at the end
See More Information

For further information feel free to contact us .

>> Dimensions Marine Rubber Airbag

Some normal sizes of our marine rubber airbags, other sizes are also available
Diameter(m)	Effective Length(m)	Layer	Pressure(MPa)
1.0	10	5~6	0.07~0.10
1.0	12	5~6	0.07~0.10
1.0	15	5~6	0.07~0.10
1.2	10	5~6	0.08~0.12
1.2	12	5~6	0.08~0.12
1.2	15	5~6	0.08~0.12
1.5	12	5~8	0.08~0.16
1.5	15	5~8	0.08~0.16
1.5	18	5~8	0.08~0.16
1.5	20	4~8	0.08~0.16
1.5	24	5~8	0.08~0.16
1.8	12	5~8	0.08~0.15
1.8	15	5~8	0.08~0.15
1.8	18	5~8	0.08~0.15
1.8	20	5~8	0.08~0.15
1.8	24	5~8	0.08~0.15
2.0	18	6~10	0.08~0.18
2.0	20	6~10	0.08~0.18
2.0	24	6~10	0.08~0.18
2.5	18	7~10	0.07~0.13
2.5	20	7~10	0.07~0.13
2.5	24	7~10	0.07~0.13
