Danforth Anchor Type Casting Steel Offshore Marine Anchor

Danforth Anchor Type Casting Steel Offshore Marine Anchor
Danforth Anchor Type Casting Steel Offshore Marine AnchorDanforth Anchor Type Casting Steel Offshore Marine AnchorDanforth Anchor Type Casting Steel Offshore Marine Anchor
group name
Offshore Anchor
Min Order
1 piece
brand name
Jerryborg Marine,safe docking,safe mooring
model
JRBMA-01
Nearest port for product export
Qingdao Port, Shanghai Port
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash
update time
Sat, 09 Jan 2021 14:40:29 GMT

Paramtents

  • product name mooring anchor

  • material steel

  • size customized

  • application mooring

Packging & Delivery

  • Min Order1 piece

Briefing

Danforth anchors are a well-known High Holding Power anchor in the offshore.

Detailed

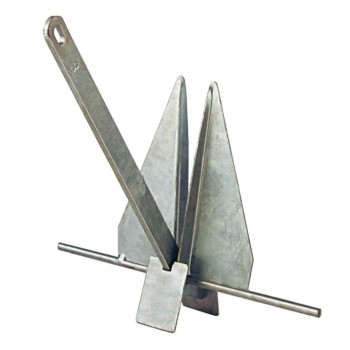

Danforth Anchor.
The Danforth Anchor is a well-known High Holding Power anchor in the offshore. The danforth anchor has the traditional holding power which has always been associated with Danforth Standard Anchors. The Danforth HHP Anchor with lighter craft usually in muddy or silty conditions.
The Danforth Anchor's shank is made of high Strength Steel. The steel flukes are strong and wide. Each anchor has a hot dipped galvanized coating for long lasting protection.  The weight range available is between 1000lb to 30000lb.
Danforth Anchor Description
  • Type: Offshore Anchor
  • Certificate: CCS, ABS, BV, NK, KR, GL, LR, DNV, RINA, RMRS, ISO9001, etc
  • Finish: Black Bitumen Paint or Hot Dip Galvanized
  • Application: Ships, Fleets, Mooring Ships, etc
  • Advantages: OEM Acceptable; Customerized Avaliable
For further information feel free to contact us .
>> Dimensions Danforth Anchor
NOMINAL WEIGHT(LB)                                                       SIZE(IN)
  A B C D E F G H J
1,000 75 71 24-1 /2 46 29-1 /4 9-3 /4 2 8 5-1 /4
2,000 92-1 /2 85 30 56-1 /2 37-1 /4 12 2 9-1 /2 7
3,000 108-1 /2 104 34-3 /4 66 40-3 /8 15 3 11 7-3/ 4
4,000 116 110 37-1 /2 71 44 15 1 3 11 9
5,000 118 112 38-3 /4 72 44-3 / 4 17 3-1 /2 12-1 /2 9-1/ 2
6,000 124 118 41 76 47-3 /4 19 4 14 10-1 /4
7,000 124 118 41 76 47-3 /4 19 4 14 10-1 /4
8,000 128 121 43-1 /2 78 50-1 /4 19 4 14 12
9,000 133 126 45-1 /4 8l-1 /8 52-1 /4 19 4 14 12-1 /2
10,000 144 137 49 88 55-1 /4 22 4-1/2 16 13
11,000 144 137 49 88 55-1 /4 22 4-1/2 16 13
12,000 116 138 1 /2 49-3 /4 89-1 /8 57 3 /8 22 4-1/2 16 13-3 /4
13,000 154 146 52-1 /2 94 60-1 /2 24 5 17-1 /2 14-1 /2
14,000 154 146 52-1 /2 94 60-1 /2 24 5 17-1 /2 14-1 /2
15,000 157 149-1 /4 53-5 /8 96 61-7 /8 24 5 17-1/2 14-7 /8
16,000 _ 161 152-1 /2 54-7 /8 98-1 /4 63-1 /4 24 5 17-1 /2 15-1 /8
17,000 164 155-1 /2 56 100 64-1 /2 24 5 17-1/2 15-1 /2
18,000 167 158-1 /2 57 102 65-5 /8 24 5 17-1/2 15-3 /4
19,000 170-1 /8 161-3 /8 58 104 66-3 /4 25 5- 1/2 20 16
20,000 173 164 59 106 68 25 5- 1/2 20 16-3 /8
25,000 195 186 67 119 75 30 6 22 18
30,000 208 198 71 127 80 32 6 23 19
