Polyurethane Coated Foam Filled Floating Donut Fenders on Poles for Ship Guarding

group name: Donut Fender

Min Order: 1 piece

brand name: Jerryborg Marine，safe docking，safe mooring

model: JRFDDF

Nearest port for product export: Qingdao Port, Shanghai Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash

update time: Fri, 23 Apr 2021 10:00:37 GMT

contact supplier

Paramtents

Foam Material closed cell EVA foam
Foam Density 20-120kg/m³
Service Life >15 years
Skin polyurea coasting (SPUA)
Skin Thickness 3-100mm
Application Ship Anti-cushion

Packging & Delivery

Min Order1 piece

Briefing

The Donut Fender is a specific type of Foam Filled Fender. It is designed to simply roll over a fixed column.

Detailed

Polyurethane Coated Foam Filled Floating Donut Fenders on Poles for Ship Guarding

: What is Donut Fender ?

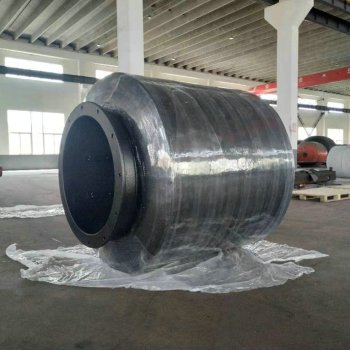

The Donut Fender is a specific type of Foam Filled Fender. It is designed to simply roll over a fixed column. Due to its structure, the fender floats up and down with the fluctuating water levels and spins when vessels berth and slide along the donut fender. The Donut Fender is designed with a 100% closed cell EVA foam core, a reinforced tyre cord fabric lining and elastomer skin, with low friction pads at the internal steel core.
Donut Fenders are available in diameters from 1,000 mm to 6,220 mm and a maximum pile diameter of 610 mm to 4,388 mm. Additionally, mooring crowns, counterweights (for sub-marine applications) or other features like protective nettings can be added.
The foam density, coating skin thickness, pile/fender diameter and also the height of the donut fender can be changed as per to customer request. Jerryborg would be pleased to receive the engineering design allowing us to produce the correct type, size and overall layout of the Donut Fender for you.
Advantages ＆ Benefits of Donut Fender
1. Higher energy absorption with lower reaction force
2. Will not sink even if skin is punctured, thanks to closed cell foam core
3. Closed-cell foam will not absorb water
4. Tough, non-marking reinforced polyurea (SPUA) skin
5. Hot-dipped galvanized swivel end fittings
6. Internal chain for high ‘pull-through’ strength
7. Flexibility in mounting configurations (floating vs. hanging)
8. Custom colours available; For further information feel free to contact us .

>> Dimensions of Donut Fender

Fender Size D	Max. Pile Diameter [mm]	Low Capacity		Standard Capacity		High Capacity
[mm]	Max. Pile Diameter [mm]	Energy [kNm]	Reaction [kN]	Energy [kNm]	Reaction [kN]	Energy [kNm]	Reaction [kN]
1,270	610	4.2	68	7.2	116	11.3	182
1,450	710	5.4	77	9.2	131	14.4	206
1,520	762	6.2	82	10.5	140	16.5	220
1,780	914	8.3	95	14.1	162	22.1	254
1,910	995	9.6	103	16.4	175	25.7	275
2,030	1,067	10.9	109	18.6	186	29.2	292
2,210	1,185	13.1	120	22.3	204	35	320
2,290	1,219	13.9	124	23.6	210	37.1	330
2,490	1,345	16.5	135	28	229	44	360
2,540	1,372	17.2	138	29.3	234	46	367
2,790	1,524	20.8	151	35.3	256	55.4	402
2,970	1,639	23.6	161	40.1	273	63	429
3,050	1,676	24.8	165	42.1	280	66.1	440
3,300	1,829	29.1	179	49.5	304	77.7	477
3,450	1,933	32.1	188	54.6	319	85.7	501
3,530	1,981	33.6	192	57.2	327	89.8	513
3,810	2,134	38.8	206	65.9	350	103.5	550
3,960	2,241	42.4	215	72.1	366	113.2	575
4,060	2,286	44.2	220	75.1	374	117.9	587
4,220	2,388	47.8	229	81.3	389	127.6	611
Intermediate sizes and different foam capacities available upon request
Value for height = 1,000 mm
