High Pressure Marine Ship Launching Rubber Airbag For Floating Barge Tugship Launching

group name: Ship Launching Airbag

Min Order: 1 piece

brand name: Jerryborg Marine，safe docking，safe mooring

model: JRBMA-01

Nearest port for product export: Qingdao Port, Shanghai Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash

update time: Wed, 06 Jan 2021 13:53:14 GMT

contact supplier

Paramtents

Production Standard ISO14409-2011
Rubber Material ASTM Standard Nature Rubber
Pressure 0.05-0.5Mpa
Diameter 0.5-2.5 meters
Length 0.5-50 meters
Application Ship Launching & Upgrading
Warranty 12 months
Reinforcement Layers 4-15 layers
Classification Society Certification CCS ABS LRS BV DNV

Packging & Delivery

150cm x200cm x60cm
Min Order1 piece

Briefing

Ship launching airbag is an innovative product of Chinese own proprietary intellectual property rights.

Detailed

Ship Launching Airbag.

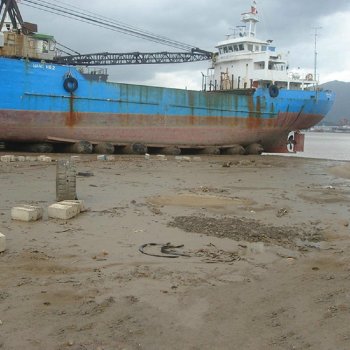

Ship Launching Airbags (also known as marine airbags) are made of synthetic-tire-cord reinforcement layers and rubber layers. They are specialized vulcanized rubber airbags that are used for launching and upgrading marine vessels. This method of launching ships is called airbag launching, which is based on log-rolling method.

Ship launching airbag is an innovative product of Chinese own proprietary intellectual property rights. It has wide application like ship launching & upgrading, caisson lifting & moving, heavy weights lifting, underwater-engineering buoyancy aid. The marine rubber airbag is not limited to space and heavy machinery, which could efficiently shorten the construction period and save lots of funds.

Advantage of Jerryborg Marine Airbag

High Bearing Capacity
High Kneading-resistance Capability
New Anti-explosion Design of End Part
Optimizing Structure Configuration
Good Abrasion-resistance Performance and High Ageing Resistance
See More Information

For further information feel free to contact us .

>> Dimensions Ship Launching Airbag

Some normal sizes of our rubber airbags, other sizes are also available
Diameter(m)	Effective Length(m)	Layer	Pressure(MPa)
1.0	10	5~6	0.07~0.10
1.0	12	5~6	0.07~0.10
1.0	15	5~6	0.07~0.10
1.2	10	5~6	0.08~0.12
1.2	12	5~6	0.08~0.12
1.2	15	5~6	0.08~0.12
1.5	12	5~8	0.08~0.16
1.5	15	5~8	0.08~0.16
1.5	18	5~8	0.08~0.16
1.5	20	4~8	0.08~0.16
1.5	24	5~8	0.08~0.16
1.8	12	5~8	0.08~0.15
1.8	15	5~8	0.08~0.15
1.8	18	5~8	0.08~0.15
1.8	20	5~8	0.08~0.15
1.8	24	5~8	0.08~0.15
2.0	18	6~10	0.08~0.18
2.0	20	6~10	0.08~0.18
2.0	24	6~10	0.08~0.18
2.5	18	7~10	0.07~0.13
2.5	20	7~10	0.07~0.13
2.5	24	7~10	0.07~0.13
